Coax Loss Calculator by Cable Type, Length and Frequency

Feedline loss is the quietest way to throw away a station. It does not announce itself, it does not show up on an SWR meter, and it gets worse every year as water works into the braid. A hundred feet of the wrong cable at 440 MHz can waste more than nine tenths of your transmitter output before it reaches the antenna, and the radio will read a perfect match while it happens.

What the decibels actually cost you

Decibels are logarithmic and most people's intuition for them is wrong in a predictable direction: small numbers matter more than they look. One decibel sounds like nothing and is a fifth of your power. Three decibels is half.

Loss applies to receive as well, which is the half people forget. A feedline that throws away 6 dB on transmit also attenuates every incoming signal by 6 dB, so you are both harder to hear and less able to hear. On VHF and UHF, where the noise floor is low and weak-signal work is normal, that receive penalty is usually the one that hurts.

Which cable for which job

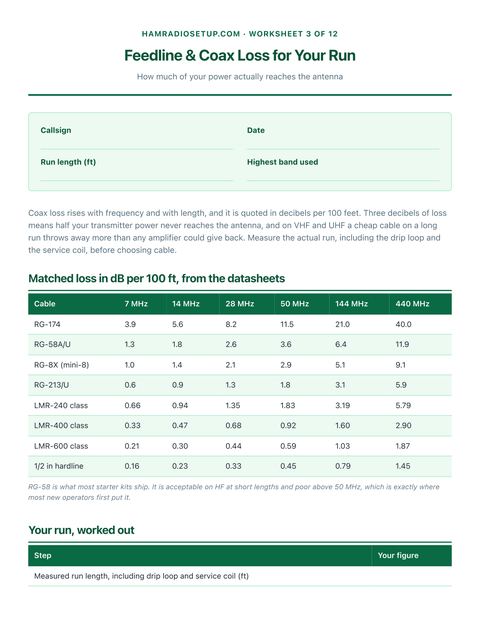

Loss figures are decibels per 100 feet at the stated frequency, from manufacturer datasheets. The pattern to notice is that the ranking barely changes with frequency but the spread widens enormously. At 14 MHz the difference between thin and thick cable is about a decibel over 100 feet, which nobody would hear. At 440 MHz it is six or seven decibels, which is the difference between a working station and a dead one.

The rules that follow from the table

• On HF, buy for power handling and durability, not for loss. A hundred feet of MOOKEERF RG-213 coax, 100 ft with UHF male$115.99 loses under a decibel at 14 MHz. The reason to buy it is that it takes legal-limit power and survives being walked on, not that it saves you a fraction of an S unit.
• On VHF and UHF, loss is the whole decision. A hundred feet of Bolton400 low-loss coax, 100 ft with PL-259$119.95 at 146 MHz loses about 1.5 dB against roughly 5 dB for RG-58. That is the difference between hitting a distant repeater and not.
• Short runs forgive everything. Twenty-five feet of Rydocyee RG-58 coax jumper, 25 ft$17.99 at 14 MHz loses under half a decibel, which is nothing. Use cheap cable for short HF jumpers without guilt.
• Portable inverts the rule. In the field the run is 25 to 50 feet and weight is the constraint, so RG-8X class cable such as JEFA Tech 240-series flex coax, 50 ft with PL-259$49.99 is correct and LMR-400 is a bad trade.
• Buy the run in one piece if you can. Not because connectors are lossy, which they barely are, but because every joint is a place for water to enter, and water in the braid is the failure that turns a good cable into a bad one over a couple of seasons.

What SWR does to feedline loss

A mismatched antenna reflects power back down the line, and that reflected power travels through the same lossy cable a second time. The additional loss caused by SWR is therefore proportional to how lossy the line already is, which produces a result that surprises people: SWR on a low-loss line is almost harmless, and SWR on a high-loss line is expensive.

The practical reading: a 3 to 1 SWR on 40 metres through 100 feet of RG-213 costs you under a decibel in total and is not worth chasing. The same 3 to 1 on 70 centimetres through 100 feet of RG-58 is a disaster, and no tuner at the radio end fixes it, because a tuner in the shack does nothing about the standing wave in the cable beyond it. Full treatment on the SWR calculator and the honest verdict on tuners is on tuner versus resonant antenna.
