Printable kit · 12 worksheets
The Station Build & Antenna Planner
Cut the antenna once, feed it properly, and keep the RF exposure record the FCC expects, all from your own measurements instead of a half-remembered number from a forum thread.
- 12 fill-in worksheets, 46 print pages
- 2 filled-in examples and a companion spreadsheet
- Online buyer guide with 3 priced complete station builds
Replaces the sticky note with your antenna lengths, the forum thread you cannot find again, and the RF exposure evaluation you meant to do and never wrote down.
30-day money-back guarantee. Use it all; if it doesn't help, every dollar back.
Look inside
Real pages from the PDF you download, including both filled-in examples. Swipe or scroll.
What's in it
See all 12 worksheet titles
- Station At A Glance
- Antenna Cut Lengths by Band
- Feedline & Coax Loss for Your Run
- SWR Sweep & Antenna Trim Log
- Power Supply & DC Distribution
- RF Exposure Evaluation Record
- Antenna Site Survey & Raising Plan
- Licence Study & Exam Tracker

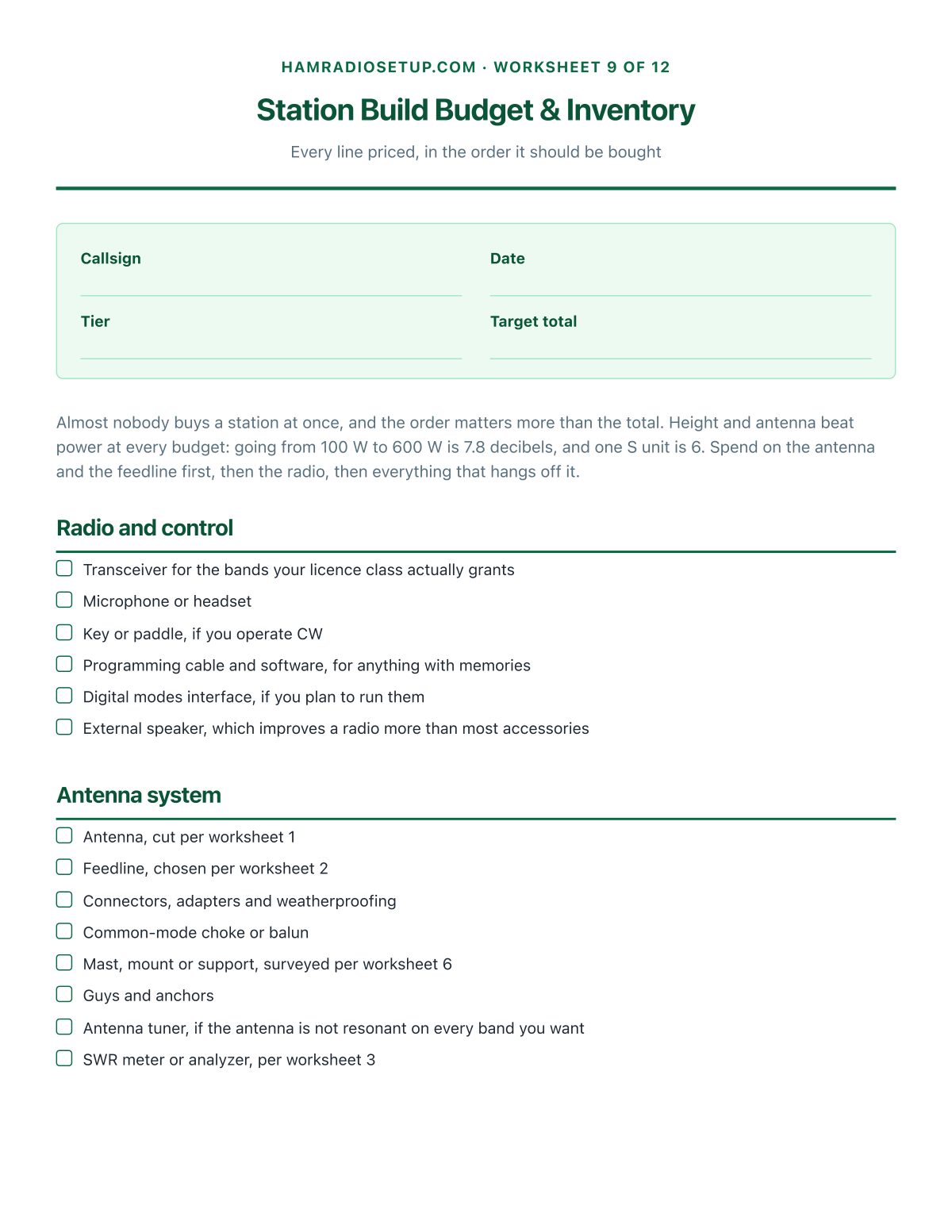

- Station Build Budget & Inventory

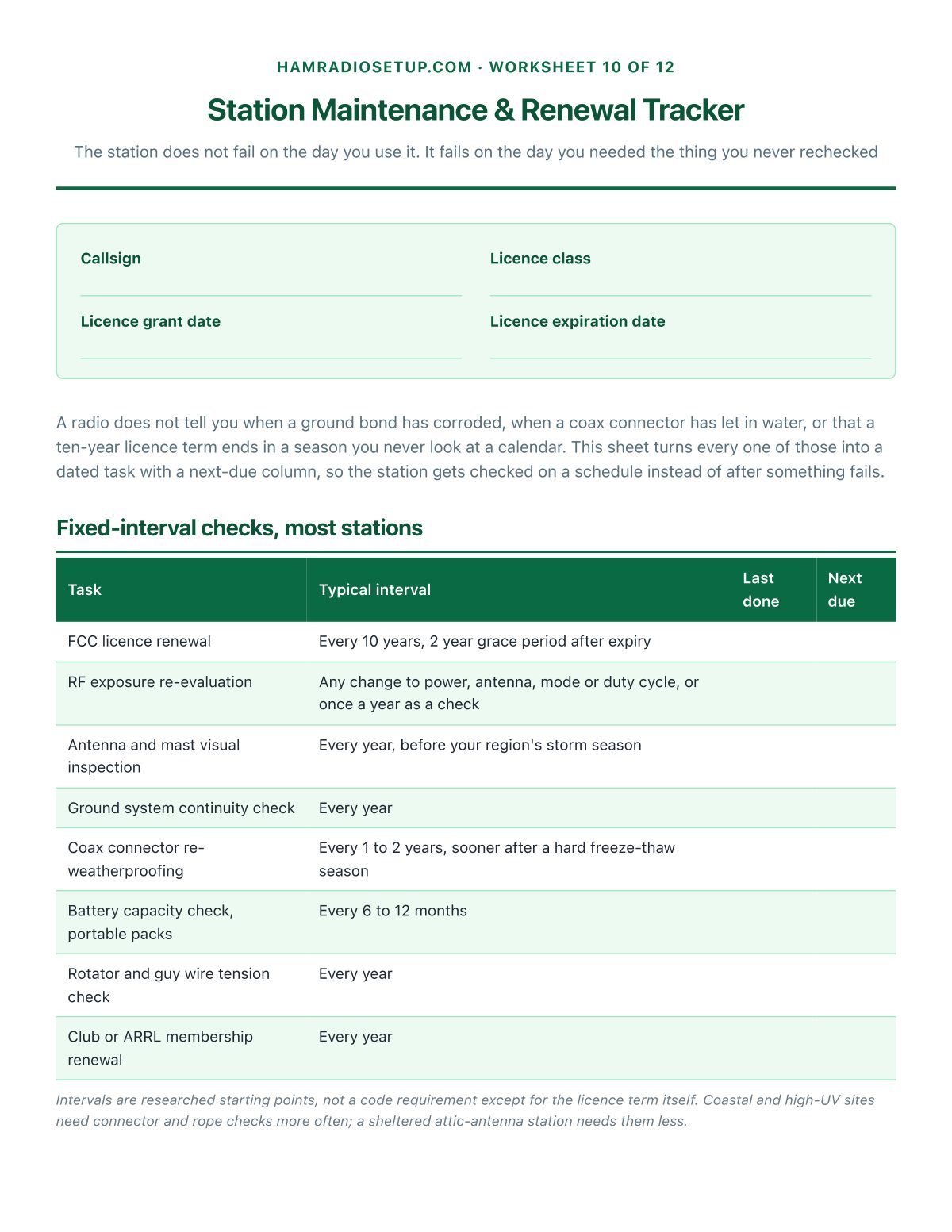

- Station Maintenance & Renewal Tracker

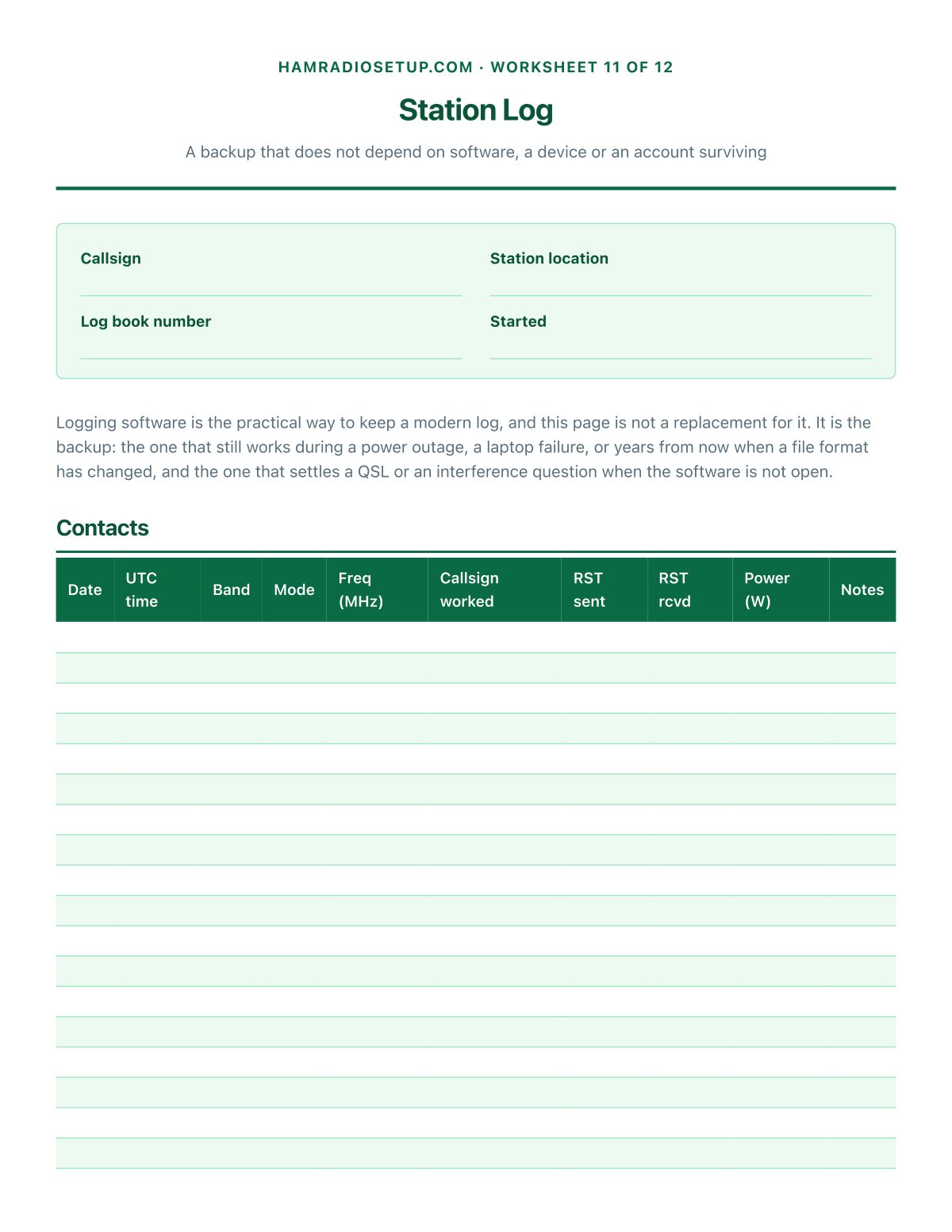

- Station Log
- Repeater & Frequency Reference
Also included

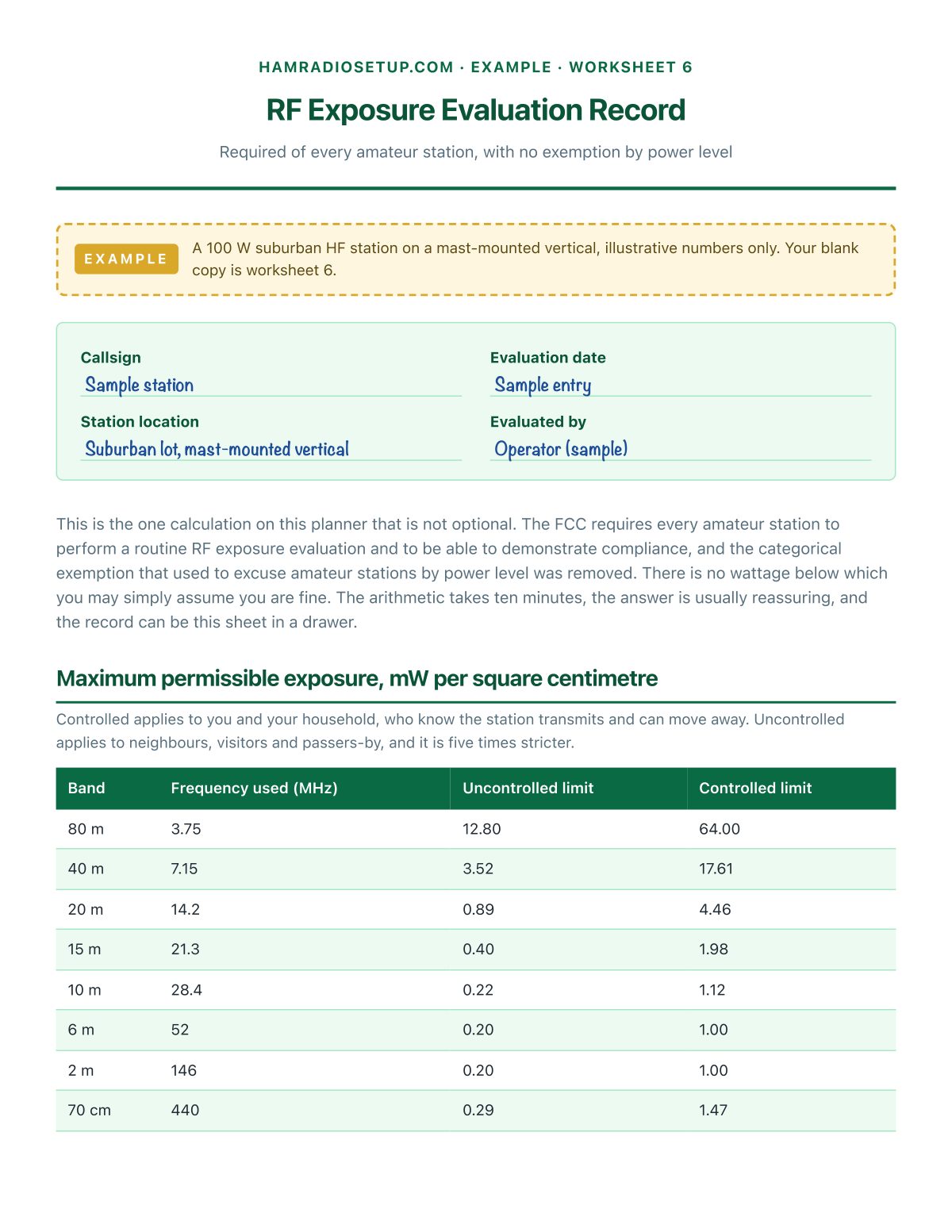

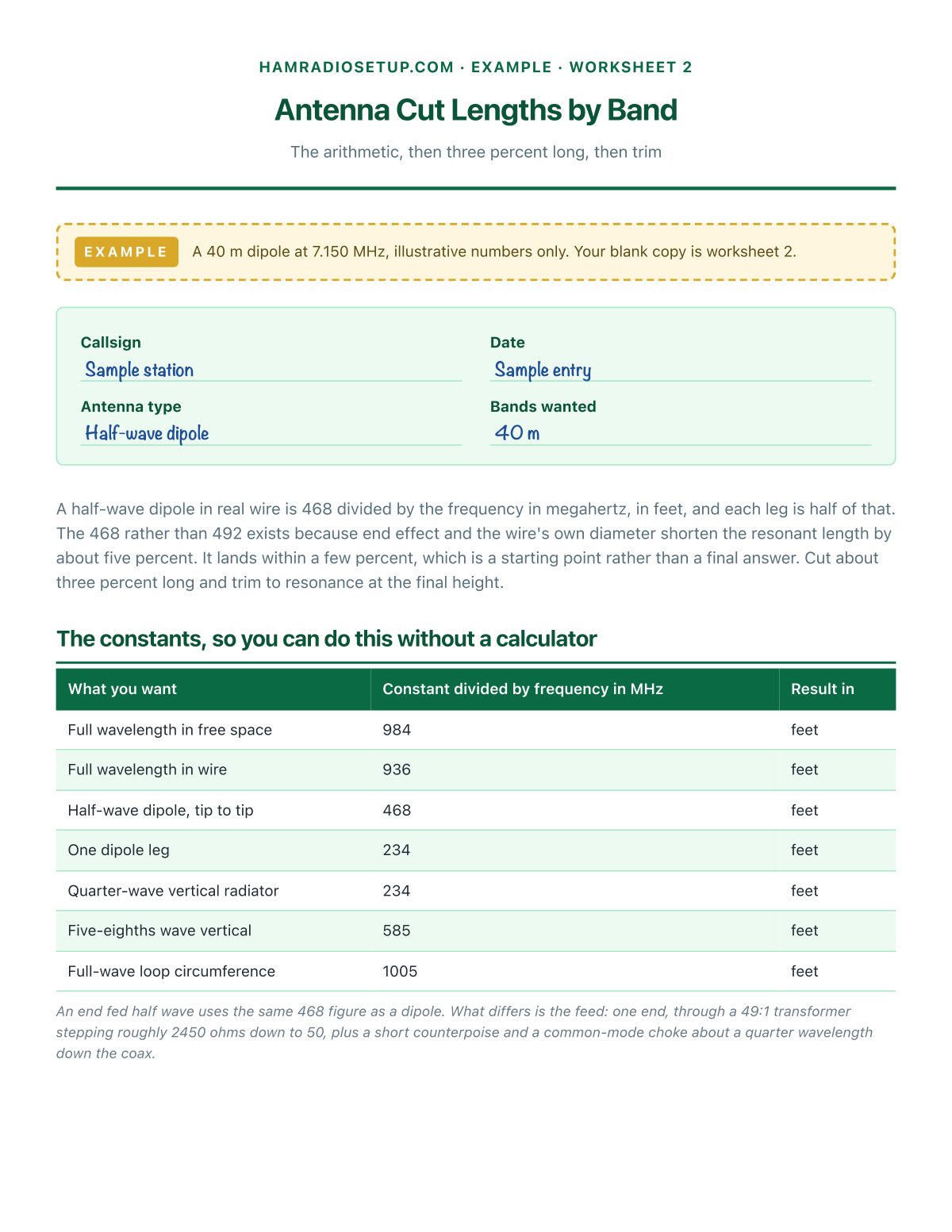

- 2 filled-in example worksheets. Antenna Cut Lengths by Band and RF Exposure Evaluation Record, worked through with illustrative numbers so you can see a finished page before you start.
- 1 bonus printable. Emergency Station Info Card: Cut it down and keep it by the operating position or in a wallet
- 1 companion spreadsheet. A companion spreadsheet: a running budget with totals, a maintenance and renewal tracker that flags what is due, and a QSO log tab. Tabs: Budget tracker, Maintenance and renewal, QSO log.

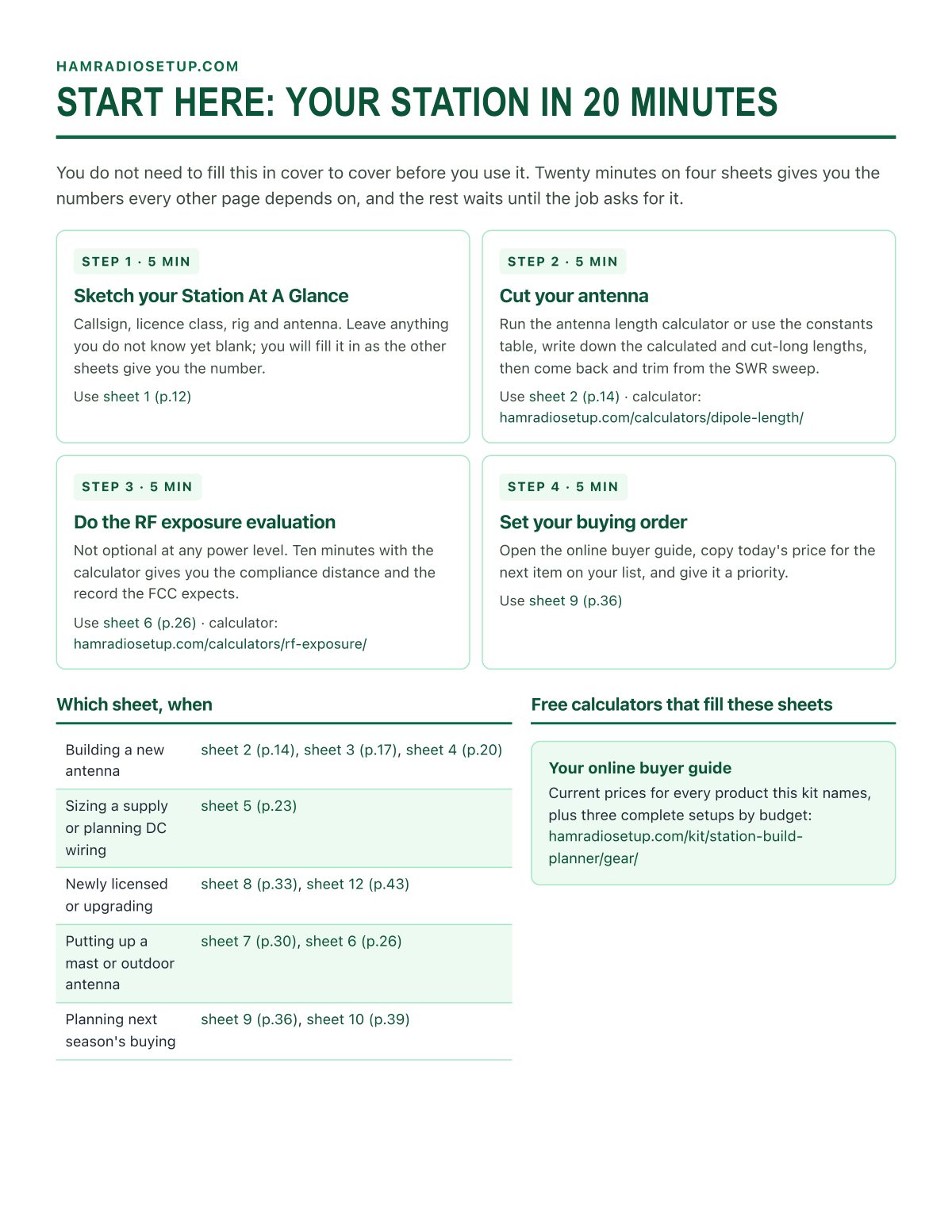

- 1 start-here page. The four sheets to fill in the first 20 minutes, and which sheet to reach for when.
Plus the online buyer guide
Three complete station builds at three budgets, every item priced and linked, plus every product the kit names, kept current on this site. Your kit links straight to it, so the prices you plan with are today's, not the day the PDF was printed.
Who it's for
- A newly licensed Technician building a first station who does not want to buy anything twice
- Anyone about to put up a wire or vertical antenna and wanting the cut lengths and the safety survey in one place
- A station that has never had a documented RF exposure evaluation, which the FCC requires regardless of power
- Anyone who wants their station's numbers, budget and log in one place instead of scattered across a notebook, a forum bookmark and memory
Who made this
Built by the HamRadioSetup.com team, the people behind the free calculators on this site, from FCC Part 97, OET Bulletin 65, manufacturer specifications and patterns in verified owner reviews. Researched, not a substitute for your own current-rules check.
30-day money-back guarantee
Use the whole kit. If it doesn't help, fill in the refund form (contact page, Refund request) within 30 days and you get every dollar back. No questions asked. Refund form.
Questions
How do I get it?
Pay on the secure Stripe checkout and you land straight on your download page: the full PDF, a ZIP of every sheet as its own printable page, and the companion spreadsheet. Bookmark that page to download again later.
Can I print it more than once?
Yes. Print as many copies as your station and your logbook need, every season.
Does this replace the FCC exam study material?
No. The licence study tracker is a progress log, not a question pool. Pair it with a manual such as the ARRL license manual for your class.
Is the RF exposure worksheet actually required?
The evaluation is required by the FCC of every amateur station, with no exemption by power level. This worksheet is a researched aid to doing your own evaluation and record-keeping; it is not legal advice or a certification.
What if it is not what I expected?
Use the whole kit. If it does not help, fill in the refund form within 30 days and you get every dollar back. No questions asked. Refund form.
The Station Build & Antenna Planner
12 worksheets · 46 pages · examples, workbook and online buyer guide
